What is a process map template and when should I use one?
A process map is a visual representation of how work flows from start to finish—steps, decisions, handoffs, and outcomes. A process map template is a reusable structure that standardizes how you capture that workflow. Instead of starting from a blank canvas, you use a pre‑built layout—like a flowchart or a swimlane—that prompts you to record steps consistently. The template helps stakeholders read and compare maps across teams without relearning the format every time.
Why this matters:
Clarity: I can make the path and decision points obvious, even for people outside the team.
Handoffs: Swimlanes show who owns each step and where the baton is passed.
Standardization: Using the same process mapping template across teams reduces confusion.
Onboarding: New hires grasp the workflow faster when they see a “picture” of the process.
Compliance: Templates make it easier to embed control points, evidence, and approvals.
Improvement: Once the “as‑is” map is clear, finding bottlenecks and waste is more straightforward.
When to use a template vs. freehand
Use a template when you need repeatability, cross‑functional alignment, or documentation you’ll maintain over time. Templates help teams converge on a shared notation and keep diagrams readable at scale.
Sketch freehand when you’re in early discovery. A quick whiteboard helps you explore variants before committing to structure. You can transfer the refined version into a process flow template later.
Process map types explained: choose the right template for the job
Not every workflow needs the same level of fidelity. Here’s a quick taxonomy to pair your need with the right process map template, plus when each shines. I also point to formats teams commonly ask for, like a swimlane process map template, a process map template Word, or a process map template Excel for quick editing and sharing.

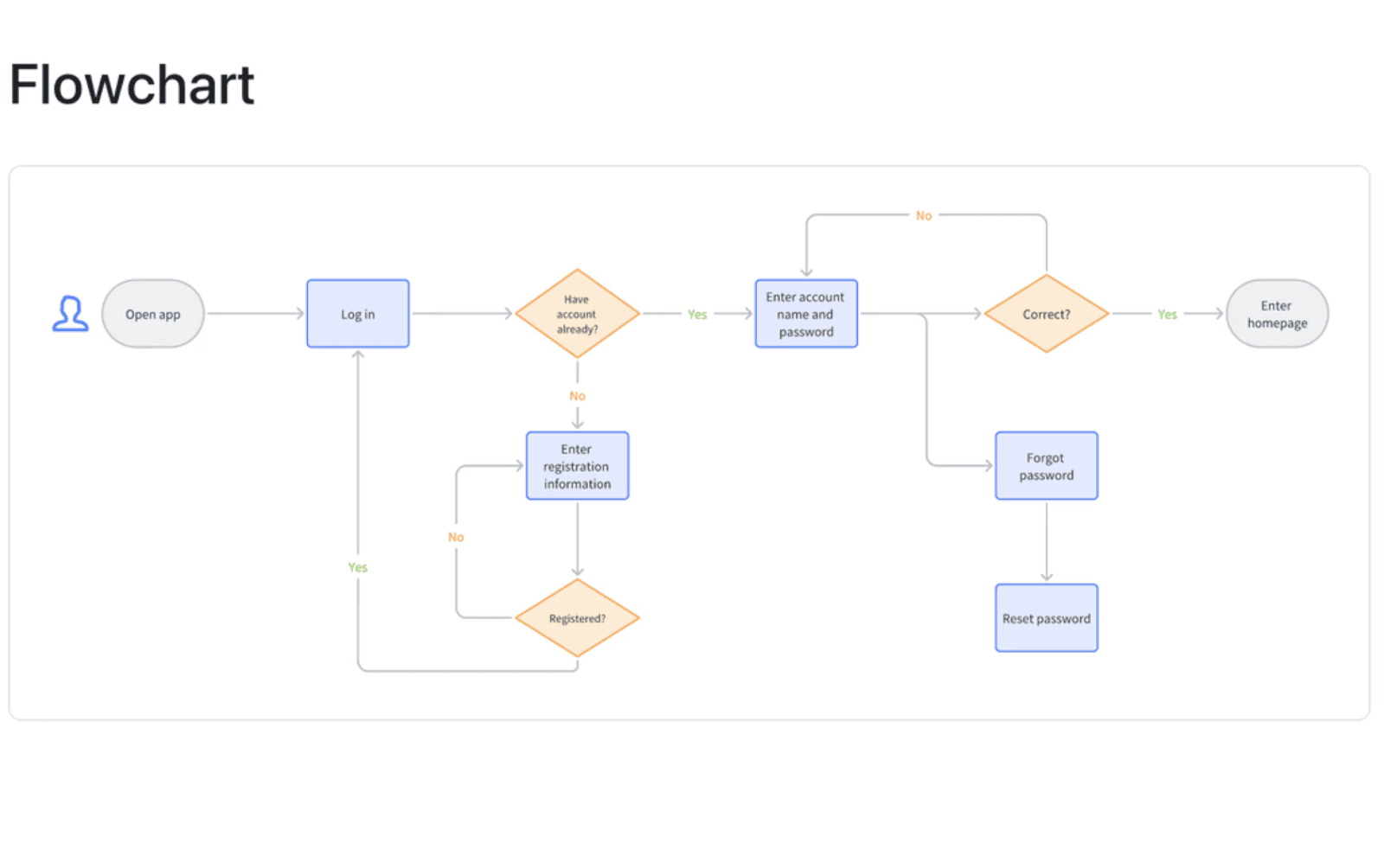

Flowchart template: simple and clear
Best for linear or lightly branched workflows—“request received → review → approve/decline → notify.”
Why I use it: the fastest way to capture sequence and decisions when the audience needs a quick read.
Works well as a process map template with Lark Docs when you want basic shapes and easy collaboration without extra tooling.
Swimlane process map template: cross‑functional clarity
Adds lanes for roles or teams so you can see handoffs and ownership.
Why I use it: it reveals hidden wait times and responsibility gaps.
Ideal for order‑to‑cash, incident management, or campaign approvals. Many teams keep a lightweight version in Excel or PowerPoint for quick updates and a more polished version in a diagramming app.
SIPOC template: supplier‑to‑customer scoping
Summarizes Suppliers, Inputs, Process, Outputs, and Customers on a single page.
Why I use it: perfect for aligning stakeholders at the start; it sets scope before you dive into steps.
Handy as a free process map template format because it’s easy to reproduce in Sheets or Excel.
BPMN template: automation‑ready rigor
Formal notation with events, tasks, and gateways; helpful when connecting to automation or integration work.
Why I use it: when exceptions, escalations, and system interactions matter to downstream implementation.
Consider this when preparing to hand off to engineering or a BPM suite.
Value stream map template: lean, end‑to‑end insight
Look across the full value chain to highlight value‑add vs. waste and the flow of materials or information.
Why I use it: useful when your goal is to reduce lead time, queues, and rework across the system.
Often starts as a simple diagram and matures with data overlays.
Process map vs. workflow diagram vs. SOP—how they connect
A process map shows flow and decisions. A workflow diagram can include system states and triggers. An SOP provides task‑level instructions with roles, timing, and tools. I can map the flow first, then create a workflow to manage these maps. Lark Base is my good assistance to create the automated workflow.
How to select fidelity and notation
Audience: executives need the big picture; frontline teams need clarity on roles and decisions.
Risk: higher risk or compliance pressure justifies more detail and explicit controls.
Lifecycle stage: start with a flowchart for “as‑is,” move to a swimlane when handoffs matter, and consider BPMN when preparing for automation.
Format: choose a process map template Excel or Word when you value accessibility and simple sharing; choose a diagramming app when you need complex notation or large canvases.
Process map symbols and notation you’ll actually use
Symbols matter because they create shared understanding during process mapping. I prefer a lean set that keeps diagrams readable and consistent across teams. These are the essentials I rely on in a process flow template or a swimlane:
Core shapes
I keep maps readable with small, consistent shapes. Start/end use rounded rectangles or ovals to mark boundaries. Actions go in rectangles as a process or task. Branches use a diamond decision, labeled as a clear question. Data/input/output gets a simple data symbol or short note for entries and artifacts. Long diagrams stay tidy with small connector circles or labeled jumps.
Roles and handoffs
Use swimlanes for roles, teams, or systems whenever ownership or handoffs shape outcomes or timing. In BPMN‑style diagrams, pools represent separate organizations and help when flows cross company boundaries. Keep handoff clarity by placing each activity in the lane of the accountable role and drawing clean arrows across lanes to show transitions.
Annotations for controls and risks
Mark control points with a small tag where approvals, verifications, or quality checks occur. Add an evidence marker where teams must attach tickets, forms, or files. Flag higher‑risk steps with a subtle icon and include a short mitigation note. These lightweight annotations turn a static diagram into an audit‑ready asset.
Consistency rules that keep maps readable
Stick to a few style rules. Use solid lines for the main path and dashed lines for references or non‑blocking links. Keep arrow direction consistent—top‑left to bottom‑right or strictly top‑to‑bottom—so scans are effortless. Label actions with verb‑noun phrases like “Review request,” and write decisions as short questions like “Approved?” Keep granularity tight: one action per box, no bundled instructions.
Putting it together
Start with a simple flowchart to capture the steps and decisions. If ownership matters, shift to a swimlane process map template and place each step in the right lane. To speed adoption, offer a free process map template pack in places such as Lark Base so teams can duplicate and edit fast. With this discipline, your process map template becomes a living guide that people can scan in seconds and trust when they act.
Process map template examples: real‑world use cases you can copy
I find that examples make concepts stick. These scenarios show how I would apply a process map template in common teams, what to highlight, and how to adapt the format.

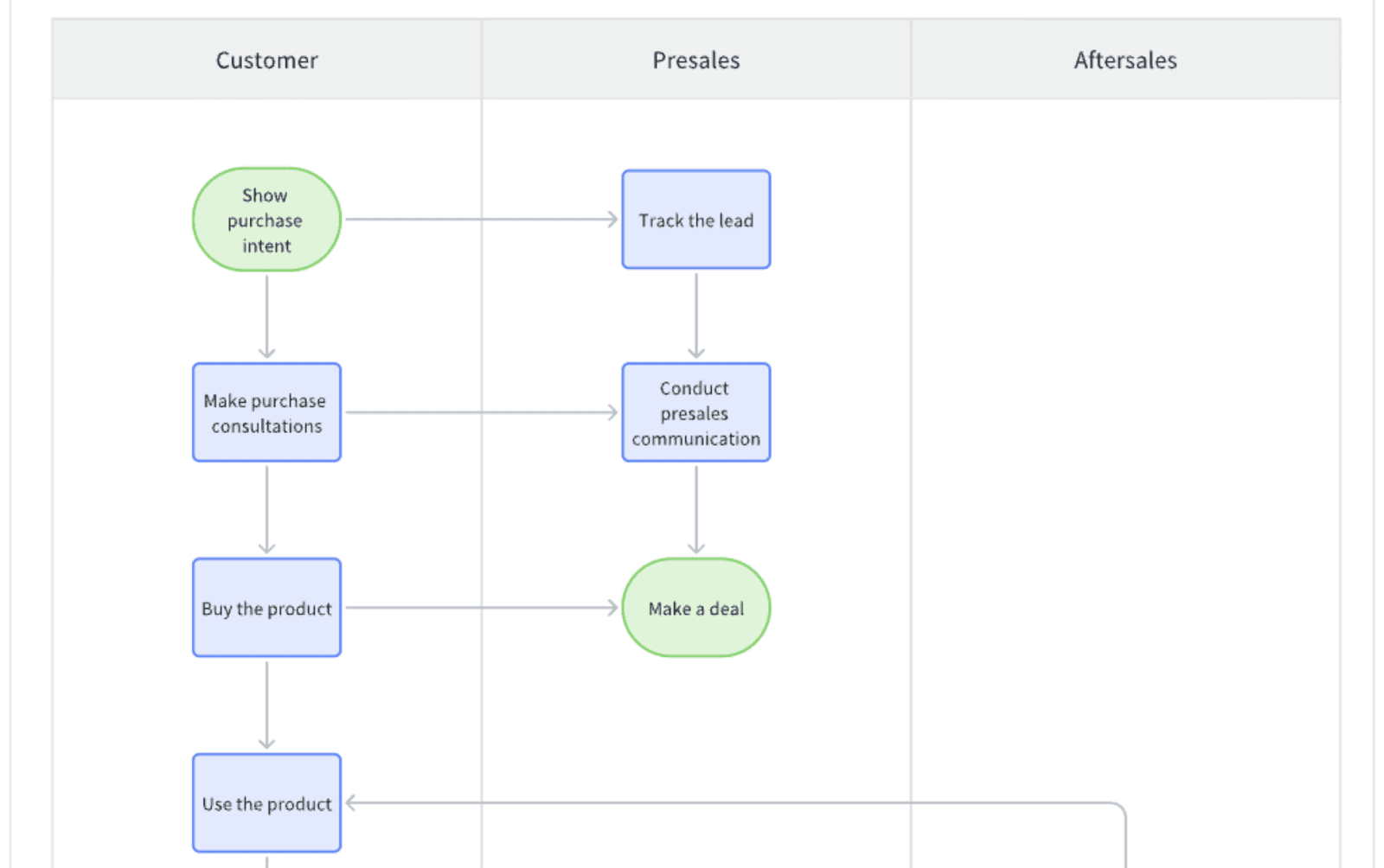

Operations: order‑to‑cash with a swimlane process map template
Goal and scope
Clarify the end‑to‑end path from order capture to cash receipt.
Keep scope to core steps and decisions; variants (returns, disputes) can be separate subprocesses.
Key steps and decisions
Capture order → Validate customer and terms → Check inventory → Confirm pricing → Approve credit (if needed) → Fulfill order → Invoice → Collect payment → Reconcile.
Roles/lanes
Sales, Order Management, Warehouse/Operations, Finance/AR, Customer.
Why the process map template matters
It shows the interrelation of steps in multiple parallel processes, with each swimlane representing a process or participant. In this way, the roles and activity sequences of each process or participant in the entire process can be clearly displayed. This is suitable for describing complex processes and workflows.
👉 Try this template: swimlane process map
Finance: month‑end close using a flowchart template with control tags
Goal and scope
Show the standard close steps from pre‑close prep to financial statement review and sign‑off.
Key steps and decisions
Pre‑close checklist → Accruals and adjustments → Reconciliations → Variance analysis → Management review → Finalize statements → Archive and control evidence.
Roles/lanes
Accounting, FP&A, Treasury, Controller, External stakeholders (auditors when applicable).
Why the template matters
A flowchart template keeps the sequence clean, while annotations mark control points (approvals, reconciliations, evidence capture).
I often share a free process map template for this case so smaller teams can get started without new software. A process map template Word with a shape legend works well for quick adoption.
👉Try this template: Flowchart
HR: new‑hire onboarding as a system architecture diagram
Goal and scope
Deliver a smooth onboarding experience from offer acceptance to productive Day X.
Key steps
Offer accepted → Background checks → Provision accounts and equipment → First‑week schedule → Role training → 30‑day check‑ins.
Roles/lanes
Recruiting, HR Ops, IT, Hiring Manager, New Hire.
Why the template matters

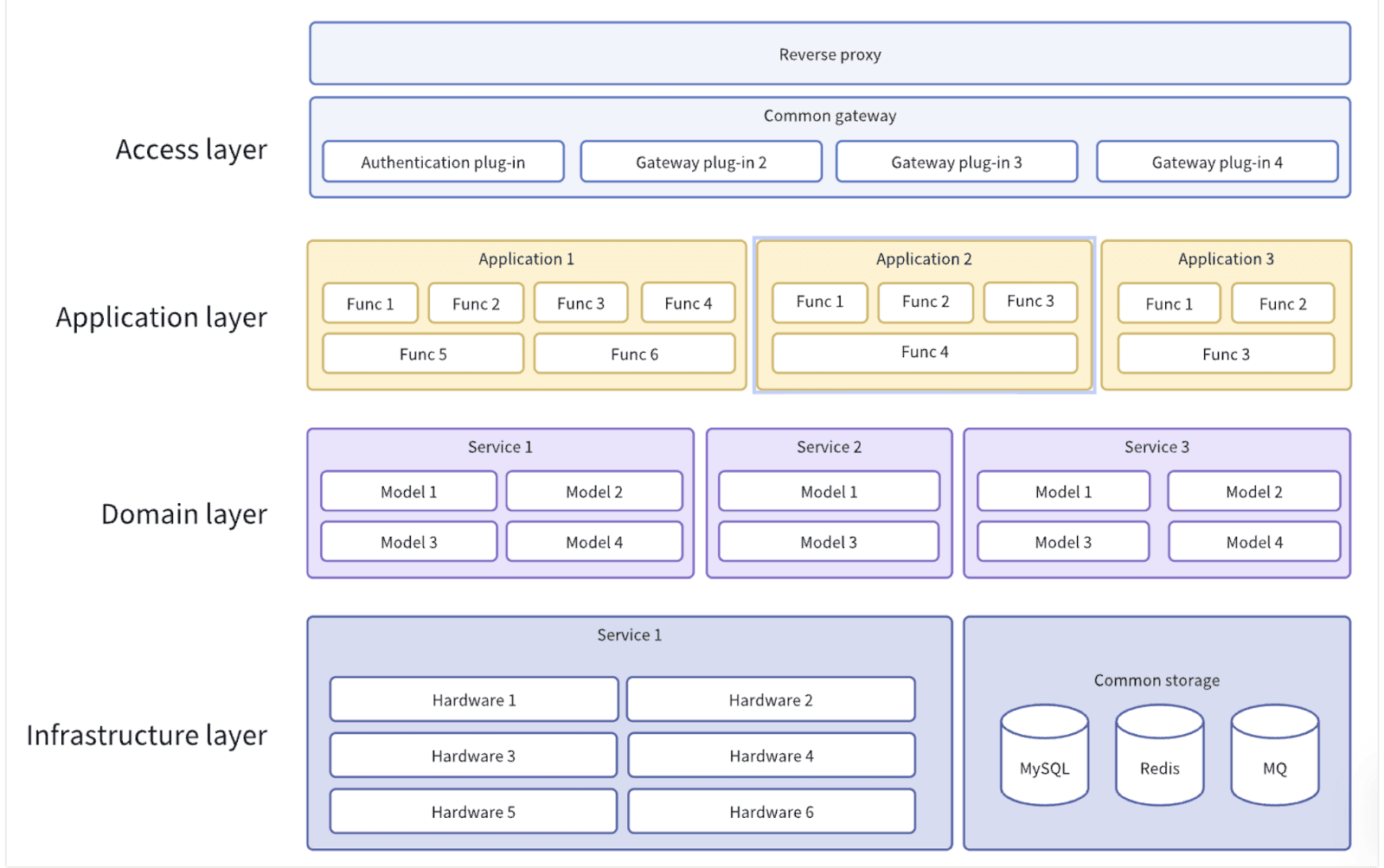

This process map visually and intuitively displays abstract application design logic and levels.
👉Try this template: System architecture diagram
IT/service:incident management with a sequence diagram process map template
Goal and scope

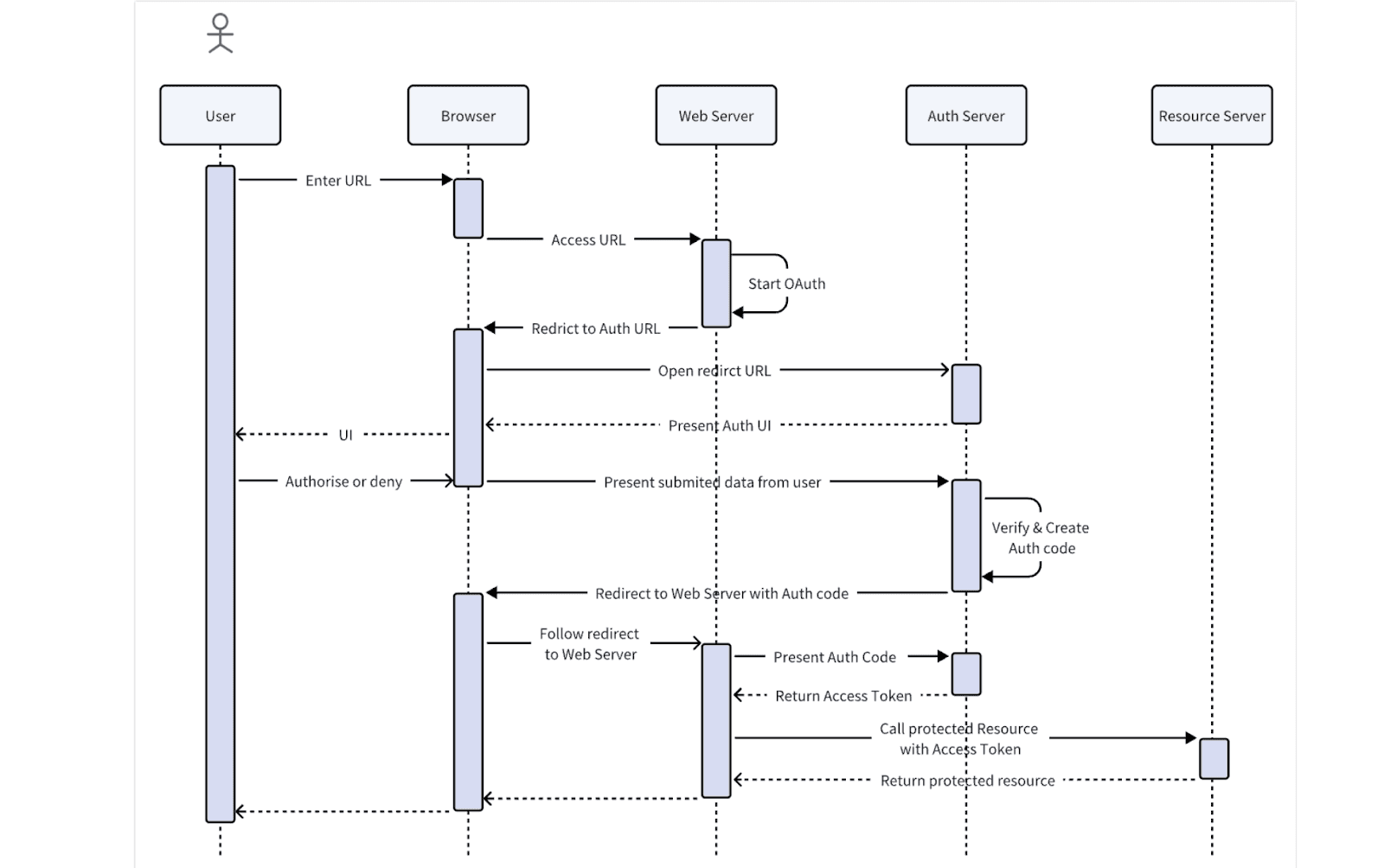

A sequence diagram focuses on interactions between components, using lifelines, messages, and arrows to show control flow over time. It’s ideal for visualizing the overall execution sequence of an incident process and clarifying who does what, when.
Key steps
User or monitor triggers an alert → Service Desk receives and logs → Triage service categorizes and prioritizes → Assignment service notifies the on‑call engineer → Engineer investigates and queries related systems (CMDB, logs, monitoring) → Decision: resolve or escalate
Roles/lanes
Service Desk, Triage service, Assignment/Dispatch, On‑call engineer, Tier ⅔, Problem Management, Communications/Status Page, Monitoring/Alerting, CMDB/Logs
Why the sequence diagram template matters
A sequence‑style process map template makes timing and handoffs unmistakable. Instead of a static flow of boxes, you see messages moving left‑to‑right across lifelines and top‑to‑bottom over time. Priority decisions and escalation rules appear as guard conditions on messages, so stakeholders can tell exactly when ownership shifts. This format is especially useful when incidents span multiple tools—ticketing, paging, chat, and monitoring—because the diagram shows the real choreography, not just the steps.
👉Try this template: Sequence diagram
Marketing: campaign approvals with Timeline and Milestone templates
Goal and scope
Streamline creative approvals and compliance checks so campaigns hit launch dates with clear ownership, predictable handoffs, and zero last‑minute surprises.
Timeline template (linear campaign flow)

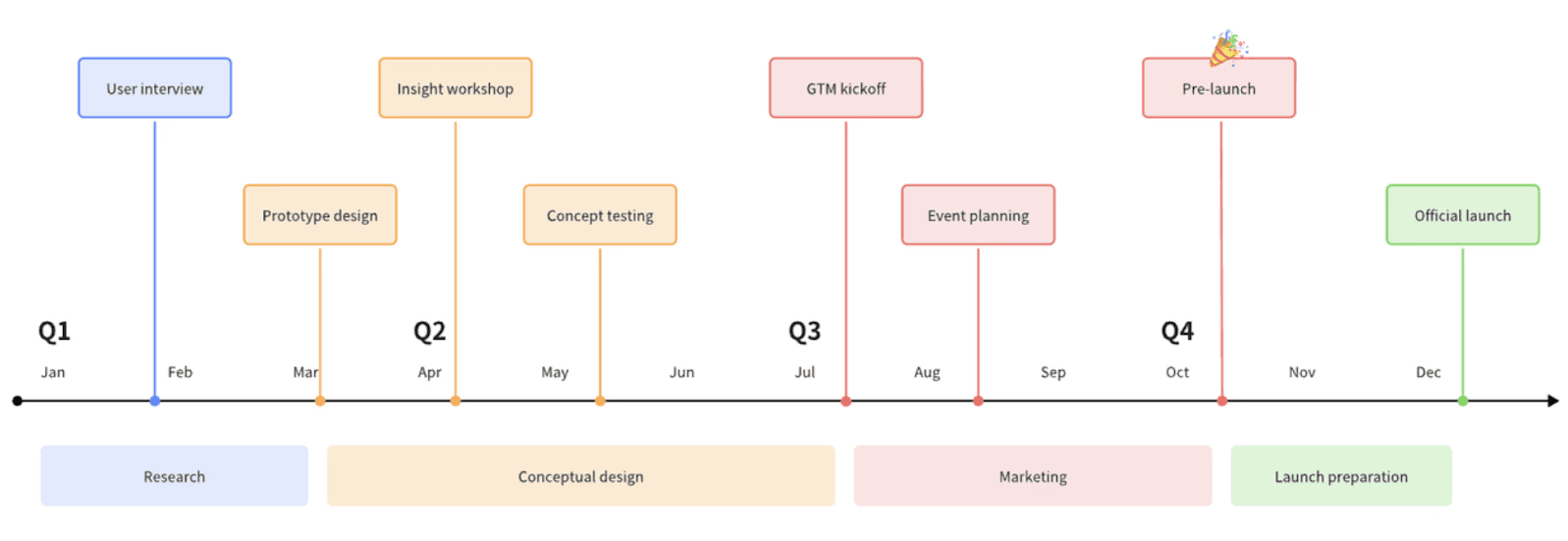

Arrange events and processes on a linear timeline: Brief → Draft → Review → Revise → Legal/Compliance (if needed) → Final approval → Launch.
Add planned vs. actual dates, owners, SLAs, dependencies, and creative/version IDs to spot bottlenecks early.
Use an Excel process map template as a tracker (columns: phase, owner, start/end, status, asset link); mirror the same line in Word for stakeholder updates.
Pair with swimlanes if approvals involve multiple brands, markets, or channels.
👉Try this template: Timeline map
Milestone template (approval checkpoints)

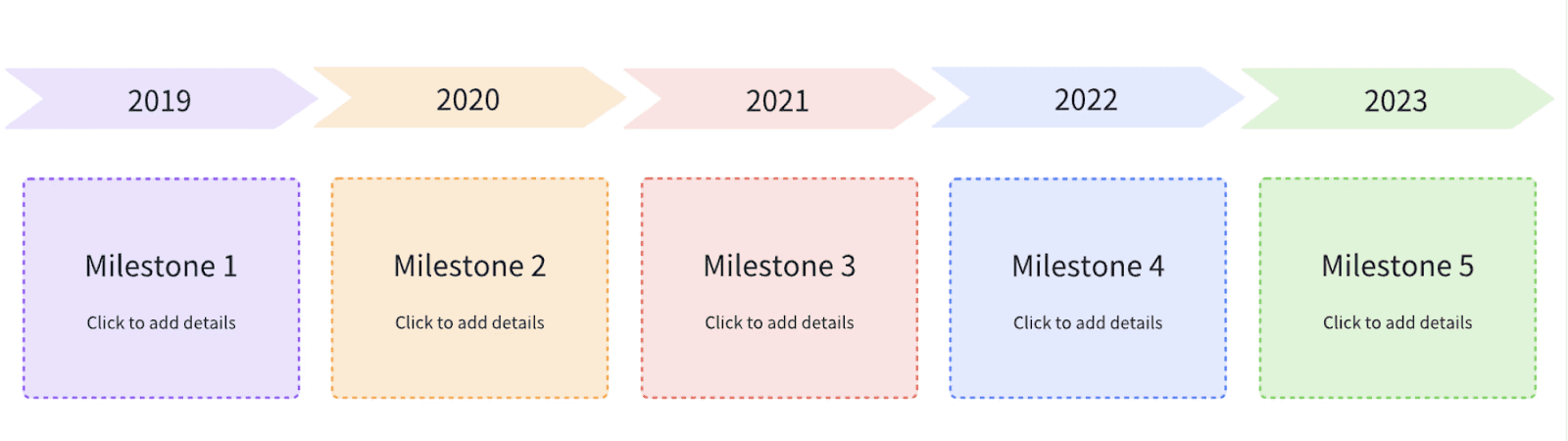

Arrange key approval events in chronological order: Brief approved → Creative ready → Stakeholder sign‑off → Compliance cleared → Launch go/no‑go → Post‑launch review.
Make approvers explicit, freeze versions at milestones, and require evidence links (creative file, claims substantiation).
Track marketing KPIs: approval cycle time, revision loops, on‑time launches. Mitigate risks: unclear approver list, late compliance, version confusion.
👉Try this template: Milestones map
Lark for process map templates: turn diagrams into execution
Once a map is clear, the next challenge is keeping it alive. I want ownership, reviews, and evidence to be effortless. This is where Lark helps connect the dots—from a process map template to day‑to‑day execution—especially when I combine Docs, whiteboards, and Lark Base.
Create a process map in Lark Docs: a simple, integrated flowchart maker

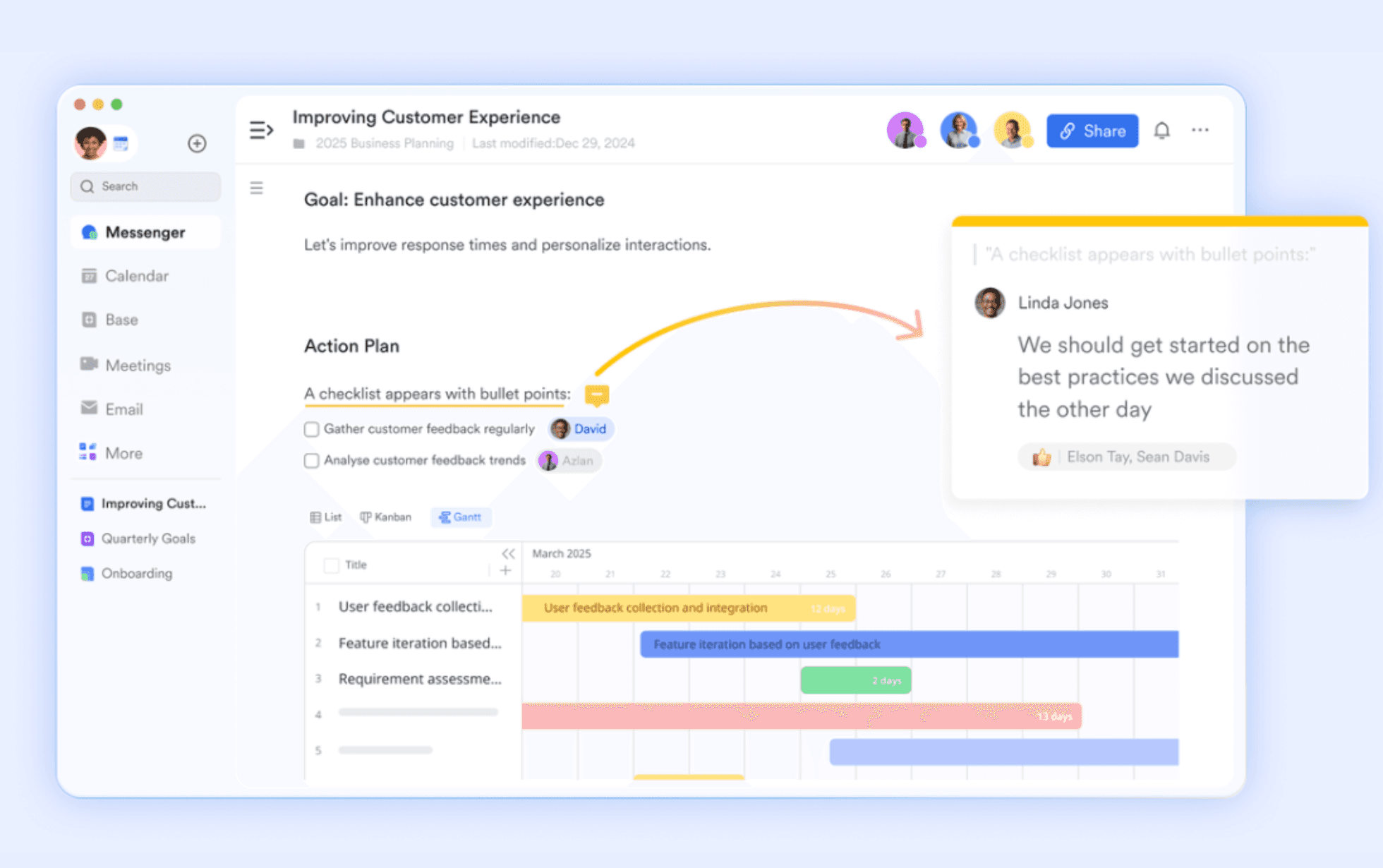

Lark’s process map creator is seamlessly integrated into Lark Docs via Boards. I can document the narrative, embed the diagram in the same doc, and keep everything in one place. This is ideal when I start with a free process map template and later evolve it into a richer swimlane process map template without breaking context.
Seamless in‑Doc flowcharts for process map
Multiple teammates edit and comment at the same time. Comments stay anchored to steps, so feedback is clear and fast to resolve. This is especially helpful for a process map template design, where ownership and handoffs benefit from quick clarifications and seamless cooperation.
Diverse elements to model any flow
I insert a Board into Lark Docs. From there, I add shapes, lines, and text to build a process map template in minutes. I can go from a rough mind map to a tidy flowchart in one space. If a section needs more structure, I layer in BPMN‑lite elements like gateways or events—only where they add clarity.
Starter templates that speed you up
I can pick from a pre‑built board template and adapt it into a process map Doc tailored to the team.
This lowers the barrier for groups that currently rely on an Excel process map template. They get the same speed with better collaboration.
Mobile‑friendly editing
With Lark’s mobile app, I review or tweak diagrams on the go. Quick changes never block progress.
Why this matters: Lark Docs lets me keep the map, the SOP, and the discussion together. Teams don’t chase files across tools, and version control becomes simpler and clearer.
Central source of truth with Lark Base
Create a centralized workflow
I store each process as a record in the Lark Base workflow with fields for owner, scope, SLA, risks, controls, linked SOPs, and the current version. This acts as the single source of truth that any map can point to.
Use multiple views for governance

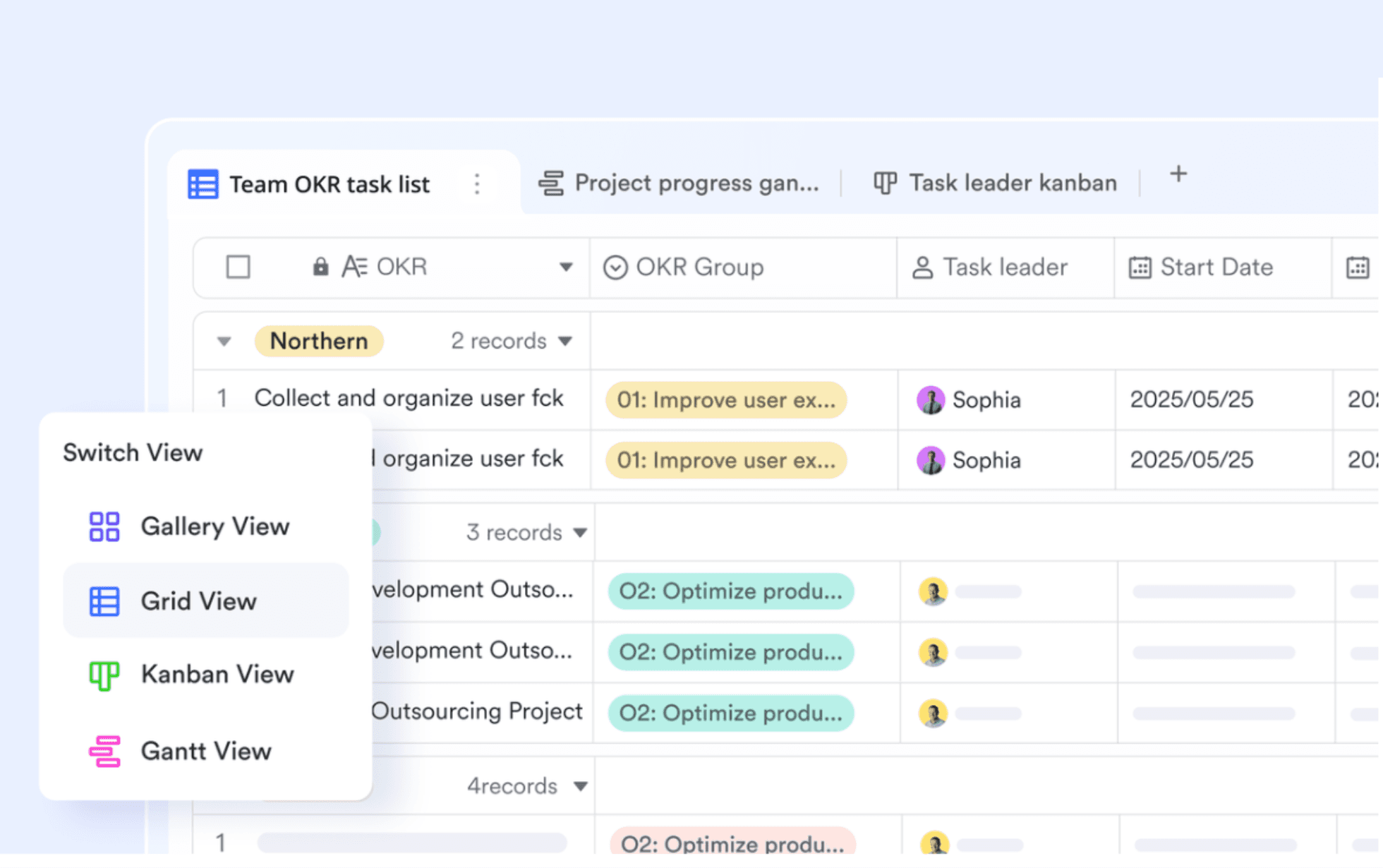

Lark Base also provides you with various views. Kanban view by lifecycle (draft, in review, published), Calendar view for review dates, and Table view for RACI.
Automations that prevent drift
I set automated reminders before review dates through Lark Base automation. On status changes, Lark notifies stakeholders, so version control is not a guessing game. This automated loop can reduce a lot of manual work.
Collaboration‑to‑automation pipeline
Co‑author maps where teams already work
Lark is an all-in-one platform. It combines chat, video meetings, documents, projects, and approvals in one place. This eliminates silos between tools and ensures every process is connected and easy to manage. I draft in Docs or a whiteboard, gather comments in Chat, and resolve feedback in one place. When the map is approved, I translate steps into tasks or approval flows without re‑keying information.
Granular permissions and security
Granular permissions keep a process map template useful and safe with high level security. Lark gives me confidence to share a process map template without exposing sensitive data. It combines enterprise‑grade encryption with fine‑grained, role‑based access, so owners can edit, reviewers can comment, and teams can view—nothing more.
Competitive pricing plans
Lark delivers an all‑in‑one suite for your process mapping. It offers users with a competitive pricing plan, ranking from free version to premium level.
Starter plan: Free. Includes 11 powerful products, supporting up to 20 users, 100 GB storage, 1,000 automation runs and unlimited AI translation in chats, docs and email.
Pro plans: Starts at $12/user/month, supporting up to 500 users. Includes unlimited message history, 50,000 automated Base workflow executions per month.
Enterprise plan: Custom pricing.
👉Try Lark’s Savings Calculator: Switching to Lark’s Pro plan can lead to significant cost savings— for example, a 100-employee company using Slack, Google Workspace, and Airtable could save approximately $25,200 annually by consolidating their tools with Lark.
Conclusion: bring your process map template to life
Choose the lightest template that tells a clear story, then let the details grow only where needed. A flowchart works well to nail the sequence; a swimlane process map template exposes ownership and handoffs; BPMN‑lite adds precision where timing and events matter. Map fast with simple labels and clear decisions, then translate the diagram into SOP steps with owners, SLAs, and a RACI. Tie the process to a few practical KPIs so progress is visible and improvement decisions are grounded. Keep governance friendly: name an owner, schedule reviews, manage versions, and write short change notes. 、
If you want an easy way to co‑create and maintain maps, try building them in Lark Docs with Boards and manage ownership and reviews in Lark Base. The combination keeps documentation, collaboration, and execution in sync with less effort.
